Rubber Grommet

• Ash %
• <1%

• Color
• Black

• Components
• Single-piece molded rubber

• Density
• 1.4 Gram per cubic centimeter(g/cm3)

• Diameter
• Outer diameter 10mm to 50mm (varies by part#)

• Feature
• Shock absorption, sealing, vibration resistance, wire protection

• Flame Resistance Level
• Basic flame resistance (special grades on request)

• Hardness
• Shore A 50-70

• Material
• Rubber (EPDM/NBR/Natural Rubber/Silicone optional)

• Natural Rubber
• Can be made of Natural or Synthetic Rubber

• Part Type
• Grommet

• Product Type
• Closed Rubber Grommet

• Resistance level
• Oil and moisture resistant

• Rubber Type
• EPDM/Nitrile/Natural Rubber/Silicone

• Size
• Multiple sizes available (typically varies from 6mm to 50mm outer diameter)

• Style
• Closed (Blind/Sealing)

• Surface Finish
• Smooth, matte finish

• Temperature Resistance
• -30C to +120C

• Tensile Strength
• 8-12 MPa (depending on rubber grade used)

• Thermal Conductivity
• Low

• Thickness
• 1mm to 5mm (as per sizing)

• Tolerance
• 0.2mm

• Usage & Applications
• Used for protecting and insulating wires or cables passing through metal panels, enclosures or other surfaces.

• Water Absorption
• <2% by weight

• Weight
• Varies with size and thickness

• Ash %
• <1%

• Color
• Black

• Components
• Single Piece Molded Grommet

• Compression Ratio
• Standard 20-25%

• Density
• 1.5 Gram per cubic centimeter(g/cm3)

• Diameter
• 6 mm to 50 mm (Outer)

• Feature
• Closed (no open center), flexible, durable, anti-vibration, protects wires

• Flame Resistance Level
• Basic (not flame retardant unless specified)

• Hardness
• 60-70 Shore A

• Length
• 2 mm to 10 mm (overall height)

• Material
• Synthetic Rubber (such as SBR/EPDM/NBR)

• Natural Rubber
• No (usually SBR, EPDM, or synthetic rubber)

• Part Type
• Cable Management Grommet

• Product Type
• Closed Grommet

• Resistance level
• Good (Weather, Ozone, Wear)

• Rubber Type
• SBR/EPDM/NBR

• Size
• Multiple sizes available (6 mm to 50 mm OD)

• Style
• Closed/Blind

• Surface Finish
• Smooth, matte

• Temperature Resistance
• -30C to +80C

• Tensile Strength
• 8 - 12 MPa

• Thermal Conductivity
• Very low (poor heat conductor)

• Thickness
• 2 mm to 6 mm

• Tolerance
• 0.1 mm

• Usage & Applications
• Wire and cable protection, hole sealing, electrical enclosures, automotive panels

• Volatile Matter (%)
• <2%

• Water Absorption
• <1%

• Weight
• 2 - 15 gm (as per size)

• Width
• Varies (commonly 10-50 mm as per size)

• Ash %
• Max 1.5%

• Color
• Black (standard), other colors on request

• Components
• Single rubber body, closed centre

• Compression Ratio
• Up to 40%

• Density
• 1.2 Gram per cubic centimeter(g/cm3)

• Diameter
• 6 mm to 50 mm

• Feature
• Dust proof, Impact resistant, Flexible, Durable

• Flame Resistance Level
• V-0 to V-2 (on request)

• Hardness
• 60 5 Shore A

• Length
• 3 mm to 10 mm (grommet insertable length)

• Material
• Rubber (NR, NBR, EPDM, or as specified)

• Natural Rubber
• Available in Natural & Synthetic rubber

• Nitrogen Content (%)
• 0.5% - 1.2%

• Part Type
• Grommet

• Product Type

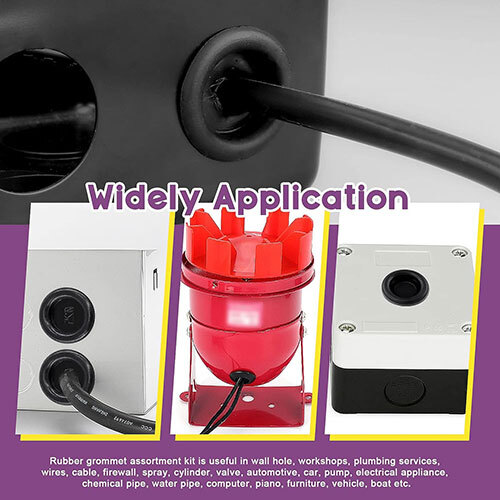

• Rubber Closed Grommet

• Resistance level
• Resistant to oil, ozone, mild acids and alkalis

• Rubber Type
• Natural, Nitrile, EPDM, or custom

• Size
• Standard sizes from 6 mm to 50 mm diameter, custom sizes available

• Style
• Round, Closed centre

• Surface Finish
• Smooth, matte

• Temperature Resistance
• -40C to +110C

• Tensile Strength
• 10-20 MPa depending on rubber compound

• Thermal Conductivity
• Low

• Thickness
• 2 mm to 10 mm

• Tolerance
• 0.2 mm

• Usage & Applications
• Wire & cable protection, sealing of electrical panels, passing wires through metal plates

• Volatile Matter (%)
• Less than 2%

• Water Absorption
• Less than 1%

• Weight
• Varies with size, e.g. 2g to 30g

• Width
• Variable as per size selection

• Ash %
• Less than 2%

• Color
• Black (standard); other options available

• Components
• Single-piece rubber structure

• Compression Ratio
• Up to 20%

• Density
• 1.2 Gram per cubic centimeter(g/cm3)

• Diameter
• Available from 10mm to 80mm outer diameter

• Feature
• Flexible, durable, easy to install, vibration dampening

• Flame Resistance Level
• Optional as per requirement

• Hardness
• Shore A 40-70

• Length
• As per design requirements

• Material
• EPDM, NBR, SBR, Silicone, or Natural Rubber

• Natural Rubber
• Available in natural, synthetic, or blended rubber

• Nitrogen Content (%)
• Negligible

• Part Type
• Panel protection component

• Product Type

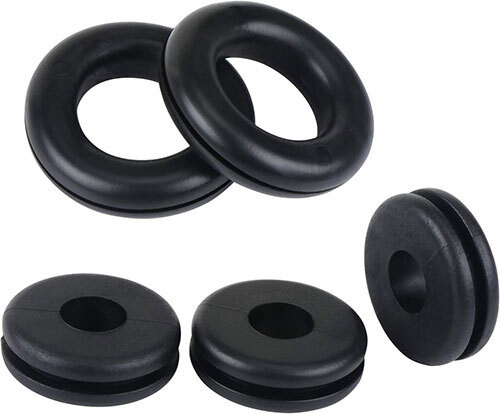

• Open Rubber Grommet

• Resistance level
• Good resistance to wear and weathering

• Rubber Type
• Open, flexible rubber

• Size
• Customizable; common inner diameters range from 6mm to 50mm

• Style
• Open, Round

• Surface Finish
• Smooth, matte

• Temperature Resistance
• -40C to +120C (standard grades)

• Tensile Strength
• 8 to 12 MPa

• Thermal Conductivity
• Low

• Thickness
• 1mm to 5mm

• Tolerance
• 0.2mm

• Usage & Applications
• Used for protecting or covering sharp edges of holes in panels, preventing wire and cable damage

• Water Absorption
• Less than 2%

• Weight
• Lightweight, depends on size

• Width
• Variable as per requirement

• Ash %
• 2%

• Color
• Black

• Components
• Single piece molded rubber

• Compression Ratio
• 15-25%

• Density
• 1.350.05 Gram per cubic centimeter(g/cm3)

• Diameter
• 25 mm

• Feature
• Flexible, durable, vibration resistant

• Flame Resistance Level
• Standard, not rated for flame resistance

• Hardness
• 605 Shore A

• Length
• Standard grommet thickness (ring type)

• Material
• Synthetic Rubber (EPDM/SBR blend)

• Natural Rubber
• No (typically EPDM/SBR/NBR)

• Nitrogen Content (%)
• 0.5%

• Part Type
• Grommet

• Product Type

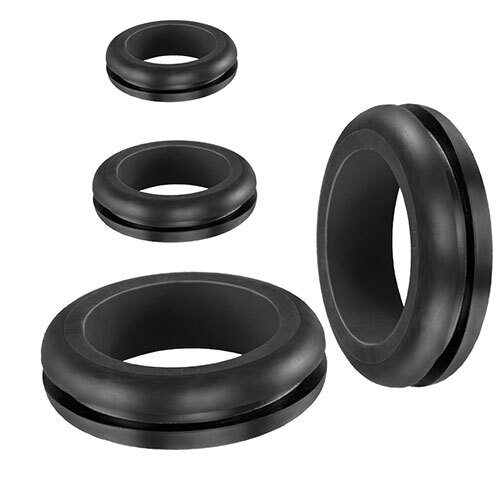

• Open Rubber Grommet

• Resistance level
• Medium (Abrasive, Oil and Weather)

• Rubber Type
• Synthetic Rubber

• Size
• 25 mm (Overall Outer Diameter)

• Style
• Open

• Surface Finish
• Smooth/Matte

• Temperature Resistance
• -30C to +100C

• Tensile Strength
• 8-12 MPa

• Thermal Conductivity
• Low

• Thickness
• 3-4 mm

• Tolerance
• 0.2 mm

• Usage & Applications
• Wire and cable protection, electrical enclosures, machinery, automotive panels

• Volatile Matter (%)
• 1.0%

• Water Absorption
• <1%

• Weight
• Approx. 6-8 g per piece

• Width
• 25 mm
