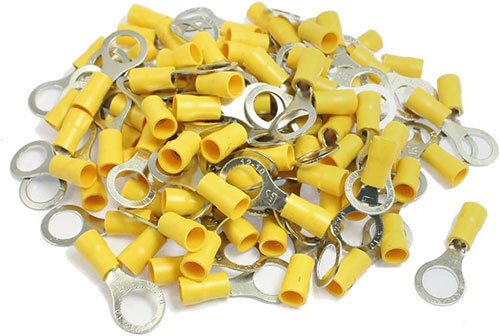

Ring Terminals

• Application
• Other, Electrical wiring, cable termination, control panels, automotive

• Cable Type
• Stranded or solid copper wire

• Color
• Yellow

• Conductor Material
• Copper

• Conductor Shape
• Round

• Conductor Type
• Other, Stranded or solid

• Connector Color
• Yellow

• Core Material
• Copper

• Core Number
• 1

• Diameter
• Internal ring: 6mm (M6)

• Dielectiric Strength
• AC 2.5kV/min

• Dimension (L*W*H)
• 22mm (L) x 8mm (W) x 4mm (H) (approx.)

• Features
• Corrosion resistant, easy to crimp, provides secure wire connections, flame retardant insulation

• Install Type
• Crimp

• Insulation
• Nylon

• Insulation Material
• Other, Nylon

• Jacket Color
• Yellow

• Jacket Material
• Other, Nylon insulation

• Length
• 22 mm (approx.)

• Locking Type
• Non-locking

• Material
• Copper with nylon insulation

• Number of Conductor
• Single

• Operating Temperature
• -40C to +105C

• Product Type
• Ring Terminal

• Rated Temperature
• 105C

• Size
• Wire range: 12-10 AWG (4-6 mm2); Stud size: M6 (1/4)

• Storage Temperature
• -20C to 80C

• Tensile Strength
• 75 N min

• Usage & Applications
• Electrical, industrial, automotive, marine wiring

• Voltage
• Other, 600V max

• Weight
• Approx. 1g per piece

• Application
• Other, Wire Termination, Electrical Connections, Cable Joining

• Cable Type
• Electrical Wire

• Color
• Blue

• Conductor Material
• Copper

• Conductor Shape
• Round

• Conductor Type
• Other, Solid/Stranded

• Connector Color
• Blue

• Core Material
• Copper

• Core Number
• Single Core

• Diameter
• Stud Size: M4 (4.3mm)

• Dielectiric Strength
• High

• Dimension (L*W*H)
• Varies by terminal size (typically 21mm x 6.5mm x 6.5mm)

• Features
• Durable, Easy to Install, Corrosion Resistant, Secure Connection, High Conductivity

• Install Type
• Crimp

• Insulation
• PVC

• Insulation Material
• PVC

• Jacket Color
• Blue

• Jacket Material
• PVC

• Length
• Standard as per terminal size

• Locking Type
• Non-Locking

• Material
• Copper (Tin Plated) with PVC Insulation

• Number of Conductor
• Single

• Operating Temperature
• -20C to +75C

• Product Type
• Ring Terminal

• Rated Temperature
• 75C Max

• Size
• 1.5-2.5mm2 (16-14 AWG)

• Storage Temperature
• -20C to 60C

• Tensile Strength
• High

• Usage & Applications
• Automotive, Industrial, Electrical Panel, General Wiring

• Voltage
• Other, 600V Max

• Weight
• Lightweight
